Product Features:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
◆ Tunnable white 3000-6000K wide color range.
◆ SMD1808 CRI>95 flexible LED strips have very good color consistency and we only provide one bin for every shipment, and SDCM is less 3 steps. R9>90，full color temperature ranges are available.
◆ SMD1808 CRI>95 LED adopt pure copper strong LED frame, pure gold encapsulation, can reduce the LED damage in different applications。
◆ SMD1808 CRI>95 LED has small size 1.8*0.8mm, smaller than the present popular SMD2210, 2216.
◆ High density LED quantities, no lighting spot, can make maximum 720leds/meter for single row. SMD1808 CRI>95 LED are very suitable for the narrow PCB, our most narrow PCB can make 2mm.

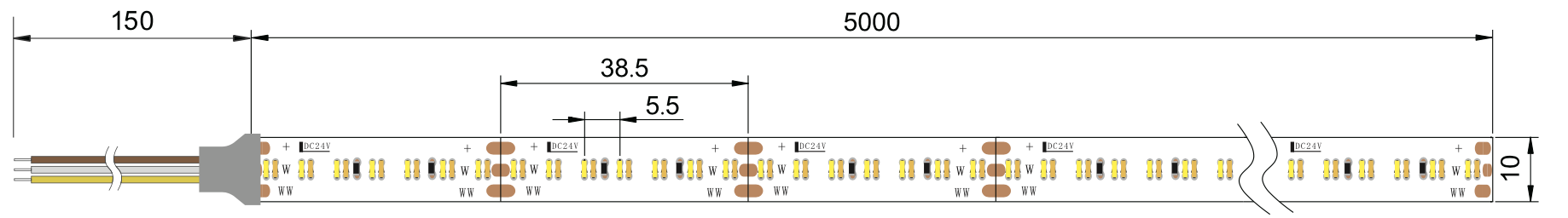

Dimensions:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Parameters:
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Model No. |
| LEDs/m | 364LEDs |
| Input Voltage | 24V | SMD Type
| SMD1808 |
| Power/m | 20W | Working hours | 50,000hrs |
| Max Current / LED | 32mA | Working Temperature | -25℃ ~ 45℃ |
| CRI (Ra) | >90 | Cuttable Length | 38.5mm |
| Beam Angle | 120° | PCB Width | 10mm |
| CCT | 3000K | 3000K | 3000K+6000K |
| Lumen/m | >1020LM | >1100LM | >2120LM |
SMD1808 Flexible Strips 364LEDs CCT Switchable
