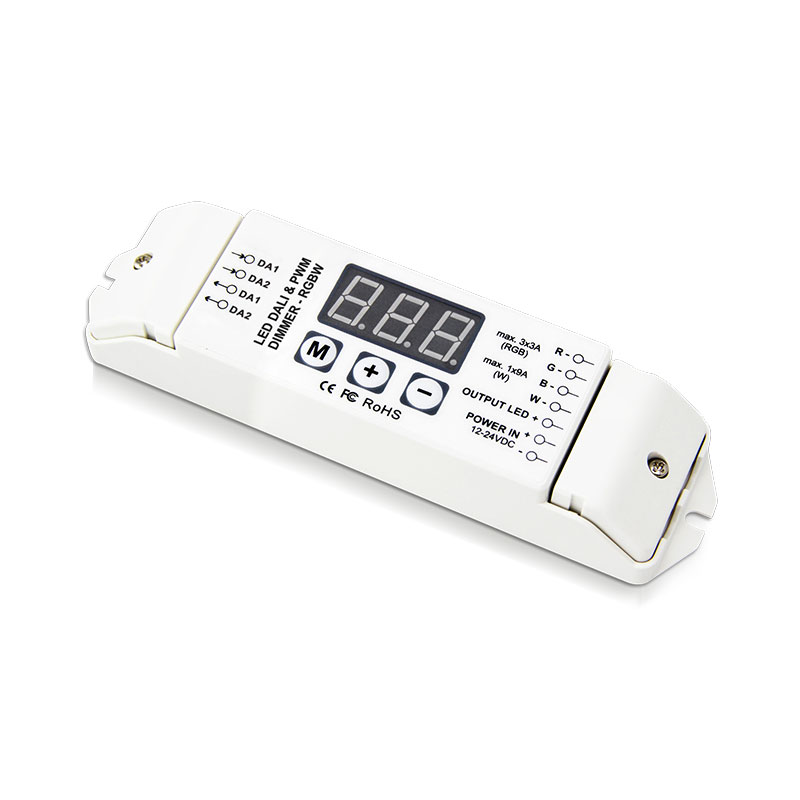

DALI dimming driver adopted the most advanced DALI standard IEC62386. It can meet with any equipment in line with the DALI protocol on a bus control, and realize the LED lighting products and traditional lighting integrate within the same set of lighting system. We also add short circuit protection and over-current protection in the driver, which avoid the LED lamp from being damage.
Product Features:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
◆ Automatically adapts input voltage DC12V-24V.
◆ Can meet with any equipment in line with the DALI protocol on a bus control.
◆ With the DALI signal input optical isolation protection.
◆ With the function of display and manually change the device address.
◆ Over current protection and short circuit protection.
Product Parameter:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model | KL-RGBW-DALI-344 |
Input voltage | DC12V-DC24V |
Output current | RGB:3A/CH×3 W:9A/CH×1 |
Output Power | RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216(24V) |
Input Signal | DALI Dimming signal |
Dimension | L176×W46×H30(mm) |
Weight (G.W) | 165g |
