SMD1808 Flexible Strips 720LEDs/m
SMD1808 Flexible Strips 720LEDs/m
Detail

Product Features:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 SMD1808 CRI>95 flexible LED strips have very good color consistency and we only provide one bin for every shipment, and SDCM is less 3 steps. R9>90,full color temperature ranges are available.


◆ SMD1808 CRI>95 LED adopt pure copper strong LED frame, pure gold encapsulation, can reduce the LED damage in different applications.


◆ SMD1808 CRI>95 LED has small size 1.8*0.8mm,smaller than the present popular SMD2210,2216.

◆ High density LED quantities, no lighting spot, can make maximum 720leds/meter for single row.


◆ SMD1808 CRI>95 LED are very suitable for the narrow PCB, our most narrow PCB can make 2mm.

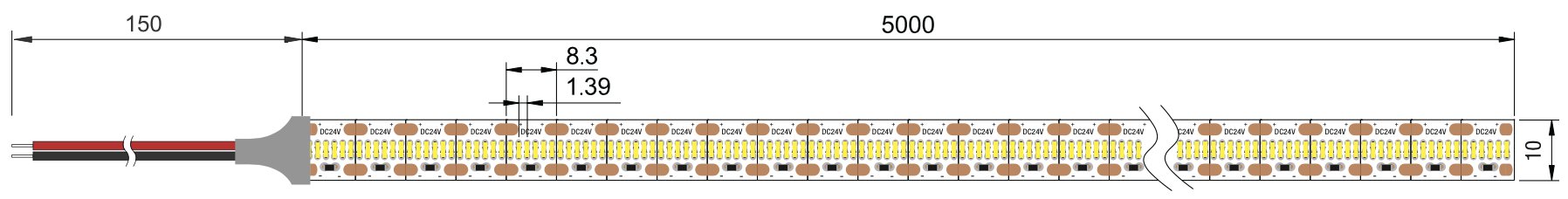

Dimensions:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

or


Parameters:

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model No.

KL-LS7210-1808-XX        KL-LS7208-1808-XX

LEDs/m720LEDs
Input Voltage24VSMD Type
SMD1808
Power/m20WWorking hours50,000hrs
Max Current / LED6.9mAWorking Temperature-25℃ ~ 45℃
CRI (Ra)>90Cuttable Length8.3mm
Beam Angle120°PCB Width10mm or 8mm


CCT2500K2700K3000K3500K4000K5000K6000K
Lumen/m>1600LM

>1620LM

>1860LM>1865LM>1920LM>1940LM>1970LM

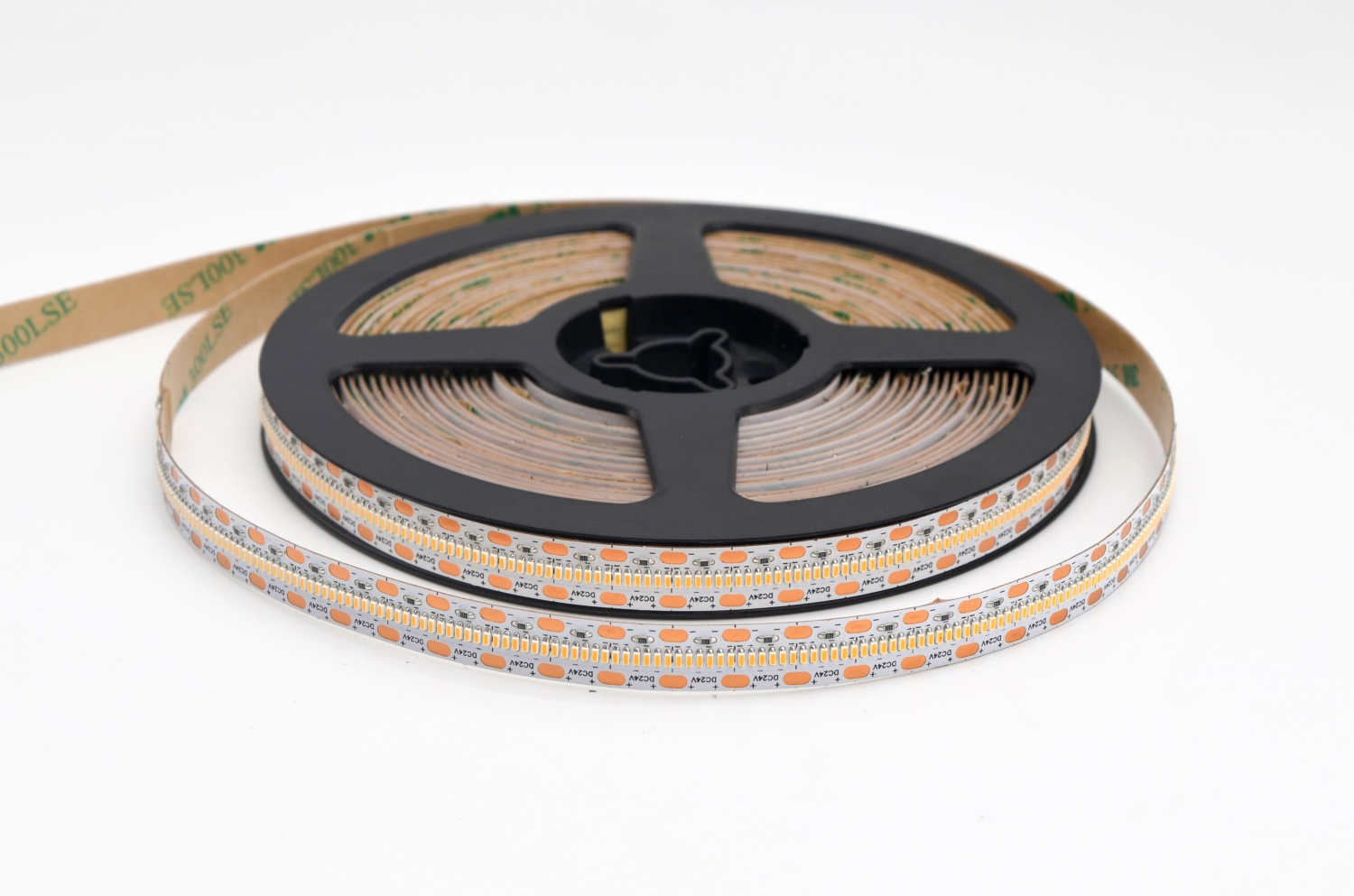

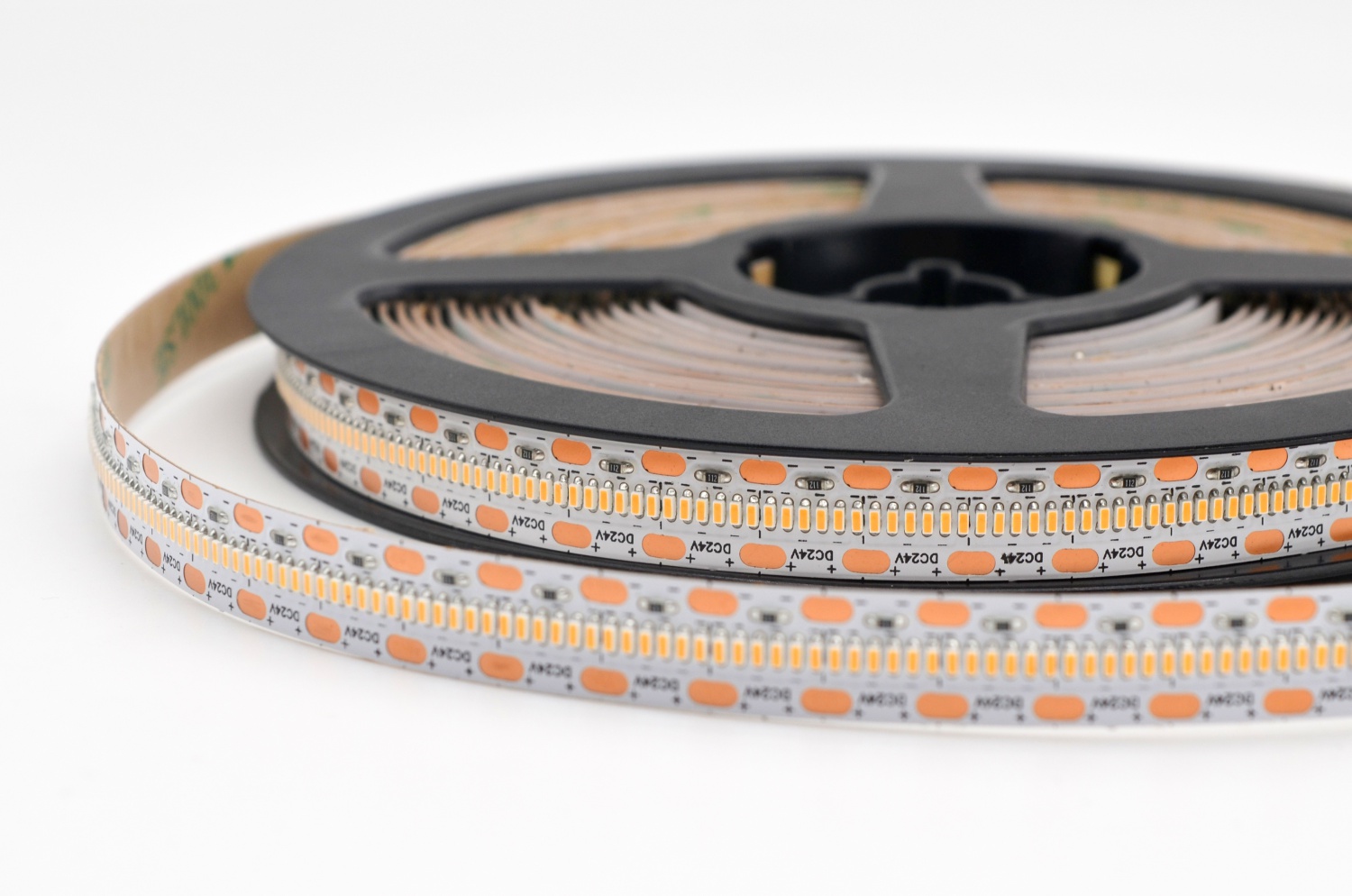

SMD1808 Flexible Strips 720LEDs/m-10mm

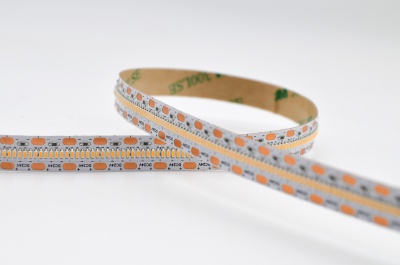

SMD1808 Flexible Strips 720LEDs/m-8mm
